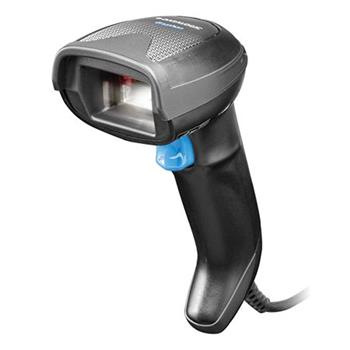

Datalogic Gryphon I GD4520, Kit, 2D Mpixel Imager, USB-only, Black (Kit includes Scanner and USB Cable 90A052258)

handheld scanner, 2D, imager (illumination: white), Green Spot, 3GL, USB, IP52, incl.: cable (USB, straight, 2 m, black), colour: black

Produkt je dodávaný bez slovenského návodu.

Skenování
Scanner type 1D/2D
2D (matrix & stacked) barcodes supported Aztec Code,Data Matrix,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code
Linear (1D) barcodes supported Code 39,EAN-13,GS1 DataBar Expanded,GS1 DataBar Omnidirectional,JAN,PDF417,PLANET,POSTNET,U.P.C.
Type Handheld bar code reader
Pitch reading angle -65 - 65 °
Light levels (direct sunlight) 0 - 100000 lx
Yaw reading angle -65 - 65 °
Tilt reading angle 0 - 360 °
Wavelength 650 nm
Optical sensor resolution (W x H) 1280 x 800 pixels
Motion tolerance (cm/s) 88.9
Možnosti připojení
Standard interfaces USB
Connectivity technology Wired
Výkon
Product colour Black
International Protection (IP) code IP52
Certification IEC 60825 Class 2
Protection features Shock resistant
Built-in display No
Image formats supported BMP,JPEG
Příkon
Power source type DC
Input voltage 5 V
Power consumption 300 mA
Hmotnost a rozměry
Weight 161 g
Width 68 mm
Height 166 mm
Depth 109 mm
Údaje o balení
Cables included USB
Provozní podmínky
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 0 - 95 %
Technické detaily
Compliance certificates RoHS
